⚙️ SPECIFICATIONS

• Brand: A1DNS
• Technology: Micro-Processor Based
• Functions: Digital Ultrasonic + 4 Channel T.E.N.S
• Channels: 4 Independent Outputs
• Modes: Auto-Mode / Manual Mode
• Ultrasound Frequency: 1 MHz (standard physiotherapy range)
• TENS Pulse Frequency: Adjustable (Low–High)
• Pulse Width: Adjustable
• Timer: Digital Adjustable Timer
• Display: LED Digital Display
• Power Source: AC Mains Operated
• Body Type: Heavy Duty Metal Cabinet
• Quality: OK TESTED ✔️

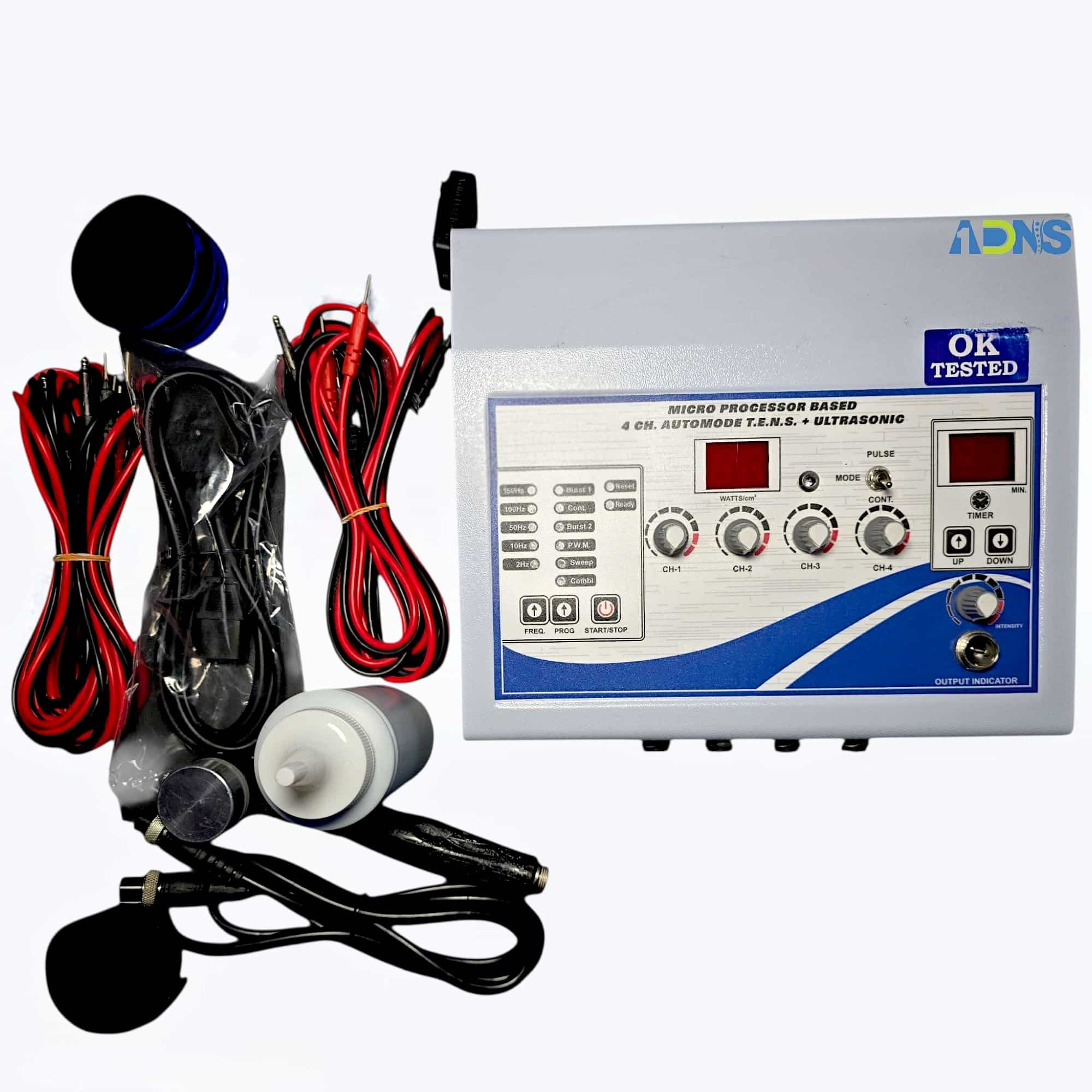

 Accessories:

• 1× Ultrasonic Metal Head
• 1× Gel Bottle
• 4× TENS Channel Wires
• 8× Electrode Pads
• 1× Probe Wire (Ultrasound)
• 1× Power Cable
• 1 Bag

💠 KEY BENEFITS

• 💙 Dual Therapy in One Device – Combines 1 MHz ultrasound with 4-channel TENS for multi-area treatment.
• 🔥 4 Channels = 4 Muscle Groups – Treat back, shoulder, knee & neck simultaneously.
• ⚡ Auto-Mode Convenience – Pre-set auto programs for quick sessions without manual tuning.
• 🎚️ Full Control – Individual intensity knobs for each channel + adjustable pulse & width.
• 🖥️ Digital Accuracy – LED display for timer, output, mode & settings
• 🧳 Complete Kit Included – All wires, pads, gel & ultrasound head included.
• 🏥 Ideal for Clinics & Home Users – Reliable output & sturdy cabinet design.

• Is easy to use due to the simple design
• Pain Relief
• Country of Origin ‏ : ‎ India
• Product Dimensions ‏ : ‎ 13 x 12 x 5 cm
• Item Weight ‏ : ‎ 4kg

⚙️ Electrical & Power Specifications

• 🔌 Voltage Input: 220–240V AC, 50/60Hz (Standard Indian AC Supply)
• ⚡ Power Consumption: 25–35 Watts (Ultrasonic + TENS combined load
• 🔋 Ultrasound Output Power: 0.5–3.0 W/cm² (1 MHz standard therapeutic range)
• 🔧 TENS Output: Adjustable pulse frequency & pulse width

⚠️ SAFETY NOTE

Not recommended for users with pacemakers, epilepsy, metal implants, or during pregnancy. Use under proper guidance.
